Cylindrical tanks for fork-lift trucks, motorhomes, campers, caravans

Models:

Cylindrical PED/TPED W14 PED

Cylindrical | PED/TPED | W14 PED

Download PDF

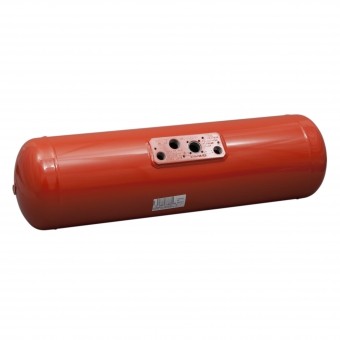

W14 PED

W14 PED

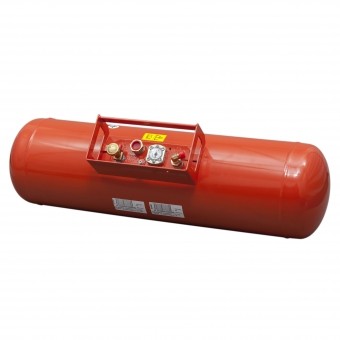

W14 PED A

W14 PED A

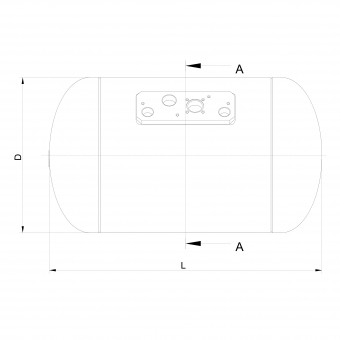

W14 PED rys 1

W14 PED rys 1

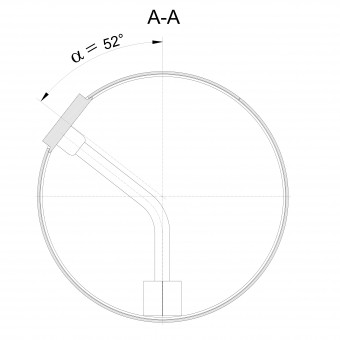

W14 PED rys 2

W14 PED rys 2

Cylindrical tank with 4-hole valve plate designed for fork-lift trucks, motorhomes, campers, caravans. Propane liquid take-off for motor fuel use or vapor take-off for auxiliary purposes.

Technical data:

  • Design pressure: 39 bar
  • Approval: PED
  • 4-hole valve plate
  • Standard color: red RAL 2002

Sizes:

Part number Diameter D [mm] Length L [mm] Capacity V [ltr] Capacity V 80% [ltr] Weight [kg]
W27002514 270 514 25 20 15
W27003014 270 607 30 24 17
W27003514 270 699 35 28 19
W27004014 270 792 40 32 21
W27004514 270 884 45 36 23
W27005014 270 977 50 40 25
W27005514 270 1069 55 44 28
W30004014 300 646 40 32 19
W30004514 300 720 45 36 21
W30005014 300 793 50 40 23
W30005514 300 867 55 44 25
W30006014 300 940 60 48 27
W30006514 300 1014 65 52 29
W30007014 300 1088 70 56 31
W31503514 315 531 35 28 17
W31504014 315 599 40 32 19
W31504514 315 667 45 36 21
W31505014 315 734 50 40 23
W31505514 315 802 55 44 25
W31506014 315 869 60 48 27
W31506514 315 937 65 52 28
W31507014 315 1004 70 56 30
W31508014 315 1139 80 64 35
W31509014 315 1274 90 72 39
W31510014 315 1409 100 80 44
W31511014 315 1544 110 88 48
W36005014 360 582 50 40 21
W36005514 360 632 55 44 23
W36006014 360 686 60 48 25
W36007014 360 789 70 56 28
W36008014 360 892 80 64 31
W36008514 360 944 85 68 33
