Type:

Classic cylindrical tanks

Models:


Cylindrical Fit W34

Cylindrical | Fit | W34

Download PDF

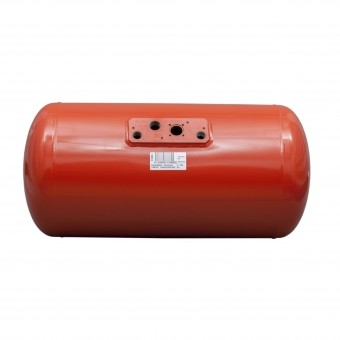

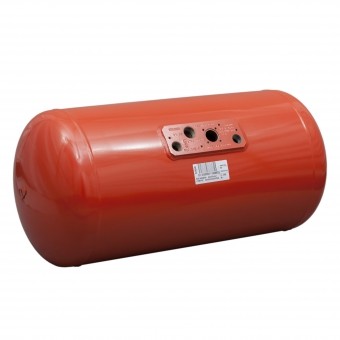

Cylindrical tank with 4-hole valve plate. Mounting with frame and straps. Large capacity tanks can be fitted with additional PRV. This type of tank is usually mounted in the trunk or underbody.

Technical data:

  • Design pressure: 30 bar
  • Approval: ECE R67

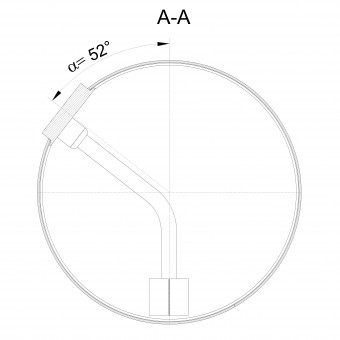

  • 4-hole valve plate
  • Standard color: black RAL 9005

Sizes:

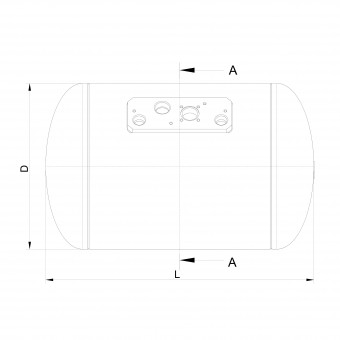

Part number Diameter D [mm] Length L [mm] Capacity V [ltr] Capacity V 80% [ltr] Weight [kg] Document of homologation
W20001534 200 548 15 12 12 E20-67R-010397.pdf
E20-67R-030397.pdf
W20002034 200 717 20 16 12 E20-67R-010397.pdf
E20-67R-030397.pdf
W20002534 200 884 25 20 15 E20-67R-010397.pdf
E20-67R-030397.pdf
W20003034 200 1052 30 24 17 E20-67R-010397.pdf
E20-67R-030397.pdf
W20003534 200 1219 35 28 19 E20-67R-010397.pdf
E20-67R-030397.pdf
W20004034 200 1387 40 32 21 E20-67R-010397.pdf
E20-67R-030397.pdf
W20004534 200 1554 45 36 23 E20-67R-010397.pdf
E20-67R-030397.pdf
W23002334 230 630 23 18 13 E20-67R-010398.pdf
E20-67R-030398.pdf
W23003034 230 809 30 24 15 E20-67R-010398.pdf
E20-67R-030398.pdf
W23003834 230 1014 38 30 18 E20-67R-010398.pdf
E20-67R-030398.pdf
W23004734 230 1245 47 37 22 E20-67R-010398.pdf
E20-67R-030398.pdf
W24402434 244 600 24 19 14 E20-67R-010399.pdf
E20-67R-030399.pdf
W24403634 244 860 36 28 18 E20-67R-010399.pdf
E20-67R-030399.pdf
W24404234 244 1000 42 33 20 E20-67R-010399.pdf
E20-67R-030399.pdf
W24405234 244 1200 52 41 23 E20-67R-010399.pdf
E20-67R-030399.pdf
W27002534 270 514 25 20 15 E20-67R-010400.pdf
E20-67R-030400.pdf
W27003034 270 607 30 24 17 E20-67R-010400.pdf
E20-67R-030400.pdf
W27003534 270 699 35 28 19 E20-67R-010400.pdf
E20-67R-030400.pdf
W27004034 270 792 40 32 21 E20-67R-010400.pdf
E20-67R-030400.pdf
W27004534 270 884 45 36 23 E20-67R-010400.pdf
E20-67R-030400.pdf
W27005034 270 977 50 40 25 E20-67R-010400.pdf
E20-67R-030400.pdf
W27005534 270 1069 55 44 27 E20-67R-010400.pdf
E20-67R-030400.pdf
W30004034 300 646 40 32 19 E20-67R-010401.pdf
E20-67R-030401.pdf
W30004534 300 720 45 36 21 E20-67R-010401.pdf
E20-67R-030401.pdf
W30005034 300 793 50 40 23 E20-67R-010401.pdf
E20-67R-030401.pdf
W30005534 300 867 55 44 24 E20-67R-010401.pdf
E20-67R-030401.pdf
W30006034 300 940 60 48 26 E20-67R-010401.pdf
E20-67R-030401.pdf
W30006534 300 1014 65 52 28 E20-67R-010401.pdf
E20-67R-030401.pdf
W30007034 300 1088 70 56 30 E20-67R-010401.pdf
E20-67R-030401.pdf
W31503534 315 531 35 28 18 E20-67R-010402.pdf
E20-67R-030402.pdf
W31504034 315 599 40 32 19 E20-67R-010402.pdf
E20-67R-030402.pdf
W31504534 315 667 45 36 21 E20-67R-010402.pdf
E20-67R-030402.pdf
W31505034 315 734 50 40 23 E20-67R-010402.pdf
E20-67R-030402.pdf
W31505534 315 802 55 44 24 E20-67R-010402.pdf
E20-67R-030402.pdf
W31506034 315 869 60 48 26 E20-67R-010402.pdf
E20-67R-030402.pdf
W31506534 315 937 65 52 27 E20-67R-010402.pdf
E20-67R-030402.pdf
W31507034 315 1004 70 56 29 E20-67R-010402.pdf
E20-67R-030402.pdf
W31508034 315 1139 80 64 32 E20-67R-010402.pdf
E20-67R-030402.pdf
W31509034 315 1274 90 72 36 E20-67R-010402.pdf
E20-67R-030402.pdf
W31510034 315 1409 100 80 39 E20-67R-010402.pdf
E20-67R-030402.pdf
W31511034 315 1544 110 88 42 E20-67R-010402.pdf
E20-67R-030402.pdf
W36005034 360 582 50 40 22 E20-67R-010403.pdf
E20-67R-030403.pdf
W36005534 360 632 55 44 23 E20-67R-010403.pdf
E20-67R-030403.pdf
W36006034 360 686 60 48 24 E20-67R-010403.pdf
E20-67R-030403.pdf
W36007034 360 789 70 56 27 E20-67R-010403.pdf
E20-67R-030403.pdf
W36008034 360 892 80 64 30 E20-67R-010403.pdf
E20-67R-030403.pdf
W36008534 360 944 85 68 32 E20-67R-010403.pdf
E20-67R-030403.pdf
W36009034 360 996 90 72 33 E20-67R-010403.pdf
E20-67R-030403.pdf
W36010034 360 1099 100 80 36 E20-67R-010403.pdf
E20-67R-030403.pdf
W36010534 360 1160 105 84 38 E20-67R-010403.pdf
E20-67R-030403.pdf
W36011034 360 1203 110 88 39 E20-67R-010403.pdf
E20-67R-030403.pdf
W36011634 360 1265 116 92 41 E20-67R-010403.pdf
E20-67R-030403.pdf
W36012034 360 1307 120 96 42 E20-67R-010403.pdf
E20-67R-030403.pdf
W36013034 360 1411 130 104 45 E20-67R-010403.pdf
E20-67R-030403.pdf
W36014034 360 1515 140 112 48 E20-67R-010403.pdf
E20-67R-030403.pdf
W40009534 400 847 95 76 34 E20-67R-010404.pdf
E20-67R-030404.pdf
W40010534 400 930 105 84 37 E20-67R-010404.pdf
E20-67R-030404.pdf
W40011534 400 1014 115 92 40 E20-67R-010404.pdf
E20-67R-030404.pdf
W40012534 400 1097 125 100 43 E20-67R-010404.pdf
E20-67R-030404.pdf
W40013534 400 1180 135 108 46 E20-67R-010404.pdf
E20-67R-030404.pdf
W40014534 400 1263 145 116 49 E20-67R-010404.pdf
E20-67R-030404.pdf
W40015534 400 1347 155 124 51 E20-67R-010404.pdf
E20-67R-030404.pdf
W40016534 400 1430 165 132 54 E20-67R-010404.pdf
E20-67R-030404.pdf
W40017534 400 1514 175 140 57 E20-67R-010404.pdf
E20-67R-030404.pdf
W40018534 400 1597 185 148 60 E20-67R-010404.pdf
E20-67R-030404.pdf
W40019534 400 1680 195 156 63 E20-67R-010404.pdf
E20-67R-030404.pdf
W40020534 400 1764 205 164 66 E20-67R-010404.pdf
E20-67R-030404.pdf
W45012034 450 861 120 96 39 E20-67R-010405.pdf
E20-67R-030405.pdf
W45014034 450 990 140 112 44 E20-67R-010405.pdf
E20-67R-030405.pdf
W45016034 450 1119 160 128 49 E20-67R-010405.pdf
E20-67R-030405.pdf
W45018034 450 1248 180 144 54 E20-67R-010405.pdf
E20-67R-030405.pdf
W45020034 450 1378 200 160 59 E20-67R-010405.pdf
E20-67R-030405.pdf
W45023034 450 1571 230 184 67 E20-67R-010405.pdf
E20-67R-030405.pdf

Part number

Diameter D [mm]
200
Length L [mm]
548
Capacity V [ltr]
15
Capacity V 80% [ltr]
12
Weight [kg]
12
Document of homologation
E20-67R-010397.pdf
E20-67R-030397.pdf
Diameter D [mm]
200
Length L [mm]
717
Capacity V [ltr]
20
Capacity V 80% [ltr]
16
Weight [kg]
12
Document of homologation
E20-67R-010397.pdf
E20-67R-030397.pdf
Diameter D [mm]
200
Length L [mm]
884
Capacity V [ltr]
25
Capacity V 80% [ltr]
20
Weight [kg]
15
Document of homologation
E20-67R-010397.pdf
E20-67R-030397.pdf
Diameter D [mm]
200
Length L [mm]
1052
Capacity V [ltr]
30
Capacity V 80% [ltr]
24
Weight [kg]
17
Document of homologation
E20-67R-010397.pdf
E20-67R-030397.pdf
Diameter D [mm]
200
Length L [mm]
1219
Capacity V [ltr]
35
Capacity V 80% [ltr]
28
Weight [kg]
19
Document of homologation
E20-67R-010397.pdf
E20-67R-030397.pdf
Diameter D [mm]
200
Length L [mm]
1387
Capacity V [ltr]
40
Capacity V 80% [ltr]
32
Weight [kg]
21
Document of homologation
E20-67R-010397.pdf
E20-67R-030397.pdf
Diameter D [mm]
200
Length L [mm]
1554
Capacity V [ltr]
45
Capacity V 80% [ltr]
36
Weight [kg]
23
Document of homologation
E20-67R-010397.pdf
E20-67R-030397.pdf
Diameter D [mm]
230
Length L [mm]
630
Capacity V [ltr]
23
Capacity V 80% [ltr]
18
Weight [kg]
13
Document of homologation
E20-67R-010398.pdf
E20-67R-030398.pdf
Diameter D [mm]
230
Length L [mm]
809
Capacity V [ltr]
30
Capacity V 80% [ltr]
24
Weight [kg]
15
Document of homologation
E20-67R-010398.pdf
E20-67R-030398.pdf
Diameter D [mm]
230
Length L [mm]
1014
Capacity V [ltr]
38
Capacity V 80% [ltr]
30
Weight [kg]
18
Document of homologation
E20-67R-010398.pdf
E20-67R-030398.pdf
Diameter D [mm]
230
Length L [mm]
1245
Capacity V [ltr]
47
Capacity V 80% [ltr]
37
Weight [kg]
22
Document of homologation
E20-67R-010398.pdf
E20-67R-030398.pdf
Diameter D [mm]
244
Length L [mm]
600
Capacity V [ltr]
24
Capacity V 80% [ltr]
19
Weight [kg]
14
Document of homologation
E20-67R-010399.pdf
E20-67R-030399.pdf
Diameter D [mm]
244
Length L [mm]
860
Capacity V [ltr]
36
Capacity V 80% [ltr]
28
Weight [kg]
18
Document of homologation
E20-67R-010399.pdf
E20-67R-030399.pdf
Diameter D [mm]
244
Length L [mm]
1000
Capacity V [ltr]
42
Capacity V 80% [ltr]
33
Weight [kg]
20
Document of homologation
E20-67R-010399.pdf
E20-67R-030399.pdf
Diameter D [mm]
244
Length L [mm]
1200
Capacity V [ltr]
52
Capacity V 80% [ltr]
41
Weight [kg]
23
Document of homologation
E20-67R-010399.pdf
E20-67R-030399.pdf
Diameter D [mm]
270
Length L [mm]
514
Capacity V [ltr]
25
Capacity V 80% [ltr]
20
Weight [kg]
15
Document of homologation
E20-67R-010400.pdf
E20-67R-030400.pdf
Diameter D [mm]
270
Length L [mm]
607
Capacity V [ltr]
30
Capacity V 80% [ltr]
24
Weight [kg]
17
Document of homologation
E20-67R-010400.pdf
E20-67R-030400.pdf
Diameter D [mm]
270
Length L [mm]
699
Capacity V [ltr]
35
Capacity V 80% [ltr]
28
Weight [kg]
19
Document of homologation
E20-67R-010400.pdf
E20-67R-030400.pdf
Diameter D [mm]
270
Length L [mm]
792
Capacity V [ltr]
40
Capacity V 80% [ltr]
32
Weight [kg]
21
Document of homologation
E20-67R-010400.pdf
E20-67R-030400.pdf
Diameter D [mm]
270
Length L [mm]
884
Capacity V [ltr]
45
Capacity V 80% [ltr]
36
Weight [kg]
23
Document of homologation
E20-67R-010400.pdf
E20-67R-030400.pdf
Diameter D [mm]
270
Length L [mm]
977
Capacity V [ltr]
50
Capacity V 80% [ltr]
40
Weight [kg]
25
Document of homologation
E20-67R-010400.pdf
E20-67R-030400.pdf
Diameter D [mm]
270
Length L [mm]
1069
Capacity V [ltr]
55
Capacity V 80% [ltr]
44
Weight [kg]
27
Document of homologation
E20-67R-010400.pdf
E20-67R-030400.pdf
Diameter D [mm]
300
Length L [mm]
646
Capacity V [ltr]
40
Capacity V 80% [ltr]
32
Weight [kg]
19
Document of homologation
E20-67R-010401.pdf
E20-67R-030401.pdf
Diameter D [mm]
300
Length L [mm]
720
Capacity V [ltr]
45
Capacity V 80% [ltr]
36
Weight [kg]
21
Document of homologation
E20-67R-010401.pdf
E20-67R-030401.pdf
Diameter D [mm]
300
Length L [mm]
793
Capacity V [ltr]
50
Capacity V 80% [ltr]
40
Weight [kg]
23
Document of homologation
E20-67R-010401.pdf
E20-67R-030401.pdf
Diameter D [mm]
300
Length L [mm]
867
Capacity V [ltr]
55
Capacity V 80% [ltr]
44
Weight [kg]
24
Document of homologation
E20-67R-010401.pdf
E20-67R-030401.pdf
Diameter D [mm]
300
Length L [mm]
940
Capacity V [ltr]
60
Capacity V 80% [ltr]
48
Weight [kg]
26
Document of homologation
E20-67R-010401.pdf
E20-67R-030401.pdf
Diameter D [mm]
300
Length L [mm]
1014
Capacity V [ltr]
65
Capacity V 80% [ltr]
52
Weight [kg]
28
Document of homologation
E20-67R-010401.pdf
E20-67R-030401.pdf
Diameter D [mm]
300
Length L [mm]
1088
Capacity V [ltr]
70
Capacity V 80% [ltr]
56
Weight [kg]
30
Document of homologation
E20-67R-010401.pdf
E20-67R-030401.pdf
Diameter D [mm]
315
Length L [mm]
531
Capacity V [ltr]
35
Capacity V 80% [ltr]
28
Weight [kg]
18
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
599
Capacity V [ltr]
40
Capacity V 80% [ltr]
32
Weight [kg]
19
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
667
Capacity V [ltr]
45
Capacity V 80% [ltr]
36
Weight [kg]
21
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
734
Capacity V [ltr]
50
Capacity V 80% [ltr]
40
Weight [kg]
23
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
802
Capacity V [ltr]
55
Capacity V 80% [ltr]
44
Weight [kg]
24
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
869
Capacity V [ltr]
60
Capacity V 80% [ltr]
48
Weight [kg]
26
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
937
Capacity V [ltr]
65
Capacity V 80% [ltr]
52
Weight [kg]
27
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
1004
Capacity V [ltr]
70
Capacity V 80% [ltr]
56
Weight [kg]
29
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
1139
Capacity V [ltr]
80
Capacity V 80% [ltr]
64
Weight [kg]
32
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
1274
Capacity V [ltr]
90
Capacity V 80% [ltr]
72
Weight [kg]
36
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
1409
Capacity V [ltr]
100
Capacity V 80% [ltr]
80
Weight [kg]
39
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
315
Length L [mm]
1544
Capacity V [ltr]
110
Capacity V 80% [ltr]
88
Weight [kg]
42
Document of homologation
E20-67R-010402.pdf
E20-67R-030402.pdf
Diameter D [mm]
360
Length L [mm]
582
Capacity V [ltr]
50
Capacity V 80% [ltr]
40
Weight [kg]
22
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
632
Capacity V [ltr]
55
Capacity V 80% [ltr]
44
Weight [kg]
23
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
686
Capacity V [ltr]
60
Capacity V 80% [ltr]
48
Weight [kg]
24
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
789
Capacity V [ltr]
70
Capacity V 80% [ltr]
56
Weight [kg]
27
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
892
Capacity V [ltr]
80
Capacity V 80% [ltr]
64
Weight [kg]
30
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
944
Capacity V [ltr]
85
Capacity V 80% [ltr]
68
Weight [kg]
32
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
996
Capacity V [ltr]
90
Capacity V 80% [ltr]
72
Weight [kg]
33
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
1099
Capacity V [ltr]
100
Capacity V 80% [ltr]
80
Weight [kg]
36
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
1160
Capacity V [ltr]
105
Capacity V 80% [ltr]
84
Weight [kg]
38
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
1203
Capacity V [ltr]
110
Capacity V 80% [ltr]
88
Weight [kg]
39
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
1265
Capacity V [ltr]
116
Capacity V 80% [ltr]
92
Weight [kg]
41
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
1307
Capacity V [ltr]
120
Capacity V 80% [ltr]
96
Weight [kg]
42
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
1411
Capacity V [ltr]
130
Capacity V 80% [ltr]
104
Weight [kg]
45
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
360
Length L [mm]
1515
Capacity V [ltr]
140
Capacity V 80% [ltr]
112
Weight [kg]
48
Document of homologation
E20-67R-010403.pdf
E20-67R-030403.pdf
Diameter D [mm]
400
Length L [mm]
847
Capacity V [ltr]
95
Capacity V 80% [ltr]
76
Weight [kg]
34
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
930
Capacity V [ltr]
105
Capacity V 80% [ltr]
84
Weight [kg]
37
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1014
Capacity V [ltr]
115
Capacity V 80% [ltr]
92
Weight [kg]
40
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1097
Capacity V [ltr]
125
Capacity V 80% [ltr]
100
Weight [kg]
43
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1180
Capacity V [ltr]
135
Capacity V 80% [ltr]
108
Weight [kg]
46
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1263
Capacity V [ltr]
145
Capacity V 80% [ltr]
116
Weight [kg]
49
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1347
Capacity V [ltr]
155
Capacity V 80% [ltr]
124
Weight [kg]
51
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1430
Capacity V [ltr]
165
Capacity V 80% [ltr]
132
Weight [kg]
54
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1514
Capacity V [ltr]
175
Capacity V 80% [ltr]
140
Weight [kg]
57
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1597
Capacity V [ltr]
185
Capacity V 80% [ltr]
148
Weight [kg]
60
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1680
Capacity V [ltr]
195
Capacity V 80% [ltr]
156
Weight [kg]
63
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
400
Length L [mm]
1764
Capacity V [ltr]
205
Capacity V 80% [ltr]
164
Weight [kg]
66
Document of homologation
E20-67R-010404.pdf
E20-67R-030404.pdf
Diameter D [mm]
450
Length L [mm]
861
Capacity V [ltr]
120
Capacity V 80% [ltr]
96
Weight [kg]
39
Document of homologation
E20-67R-010405.pdf
E20-67R-030405.pdf
Diameter D [mm]
450
Length L [mm]
990
Capacity V [ltr]
140
Capacity V 80% [ltr]
112
Weight [kg]
44
Document of homologation
E20-67R-010405.pdf
E20-67R-030405.pdf
Diameter D [mm]
450
Length L [mm]
1119
Capacity V [ltr]
160
Capacity V 80% [ltr]
128
Weight [kg]
49
Document of homologation
E20-67R-010405.pdf
E20-67R-030405.pdf
Diameter D [mm]
450
Length L [mm]
1248
Capacity V [ltr]
180
Capacity V 80% [ltr]
144
Weight [kg]
54
Document of homologation
E20-67R-010405.pdf
E20-67R-030405.pdf
Diameter D [mm]
450
Length L [mm]
1378
Capacity V [ltr]
200
Capacity V 80% [ltr]
160
Weight [kg]
59
Document of homologation
E20-67R-010405.pdf
E20-67R-030405.pdf
Diameter D [mm]
450
Length L [mm]
1571
Capacity V [ltr]
230
Capacity V 80% [ltr]
184
Weight [kg]
67
Document of homologation
E20-67R-010405.pdf
E20-67R-030405.pdf
