UltraSlim

Type:

UltraSlim superlight toroidal tanks

Models:


Toroidal UltraSlim T11 UltraSlim

Toroidal | UltraSlim | T11 UltraSlim

Download PDF

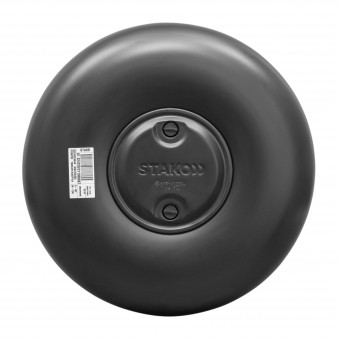

Ultraslim (thin wall) superlight extrenal toroidal tank for multivalve at 0 deg. Optional mounting with brackets that can be customized to specific vehicle architecture. This type of tank is usually mounted underbody in the spare tyre area.

Technical data:

  • Design pressure: 30 bar
  • Approval: ECE R67
  • Multivalve: 0 deg
  • Standard color: black RAL 9005

Sizes:

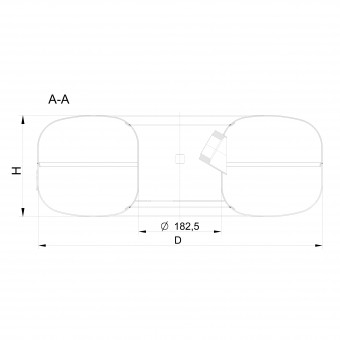

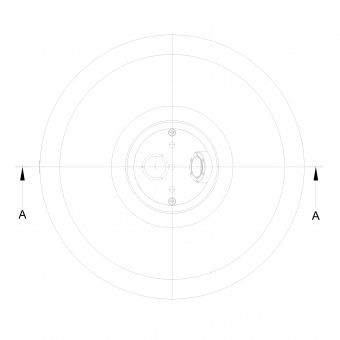

Part number Diameter D [mm] Height H [mm] Capacity V [ltr] Capacity V 80% [ltr] Weight [kg] Document of homologation
T58004111 580 200 41 33 17 E20-67R-031075.pdf
T63004511 630 190 45 36 17 E20-67R-011071.pdf
T63004811 630 200 48 38 18 E20-67R-011072.pdf
T63005511 630 225 55 44 19 E20-67R-011073.pdf
T63006211 630 250 62 49 20 E20-67R-011074.pdf
T65005011 650 200 50 40 19 E20-67R-011075.pdf
T65005611 650 220 56 44 20 E20-67R-011076.pdf
T65006211 650 240 62 49 21 E20-67R-011077.pdf
T65007111 650 270 71 56 22 E20-67R-011078.pdf

Part number

Diameter D [mm]
580
Height H [mm]
200
Capacity V [ltr]
41
Capacity V 80% [ltr]
33
Weight [kg]
17
Document of homologation
E20-67R-031075.pdf
Diameter D [mm]
630
Height H [mm]
190
Capacity V [ltr]
45
Capacity V 80% [ltr]
36
Weight [kg]
17
Document of homologation
E20-67R-011071.pdf
Diameter D [mm]
630
Height H [mm]
200
Capacity V [ltr]
48
Capacity V 80% [ltr]
38
Weight [kg]
18
Document of homologation
E20-67R-011072.pdf
Diameter D [mm]
630
Height H [mm]
225
Capacity V [ltr]
55
Capacity V 80% [ltr]
44
Weight [kg]
19
Document of homologation
E20-67R-011073.pdf
Diameter D [mm]
630
Height H [mm]
250
Capacity V [ltr]
62
Capacity V 80% [ltr]
49
Weight [kg]
20
Document of homologation
E20-67R-011074.pdf
Diameter D [mm]
650
Height H [mm]
200
Capacity V [ltr]
50
Capacity V 80% [ltr]
40
Weight [kg]
19
Document of homologation
E20-67R-011075.pdf
Diameter D [mm]
650
Height H [mm]
220
Capacity V [ltr]
56
Capacity V 80% [ltr]
44
Weight [kg]
20
Document of homologation
E20-67R-011076.pdf
Diameter D [mm]
650
Height H [mm]
240
Capacity V [ltr]
62
Capacity V 80% [ltr]
49
Weight [kg]
21
Document of homologation
E20-67R-011077.pdf
Diameter D [mm]
650
Height H [mm]
270
Capacity V [ltr]
71
Capacity V 80% [ltr]
56
Weight [kg]
22
Document of homologation
E20-67R-011078.pdf
