Toroidal Legacy F11

Toroidal | Legacy | F11

Download PDF
F11

F11

F11

F11

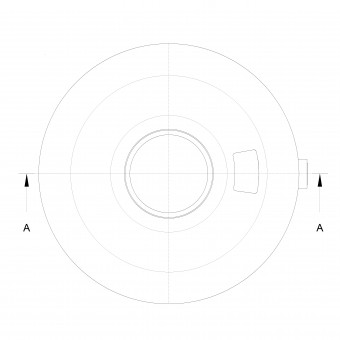

F11 rys 1

F11 rys 1

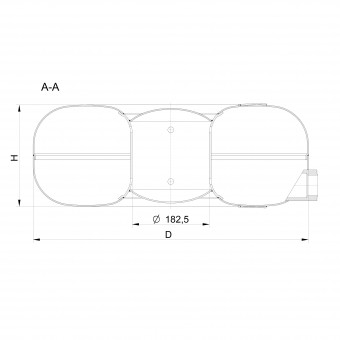

F11 rys 2

F11 rys 2

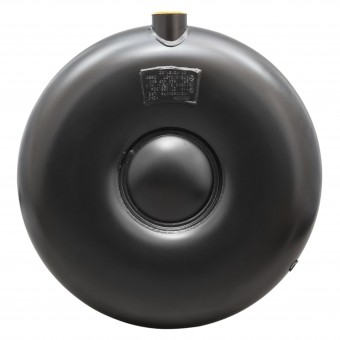

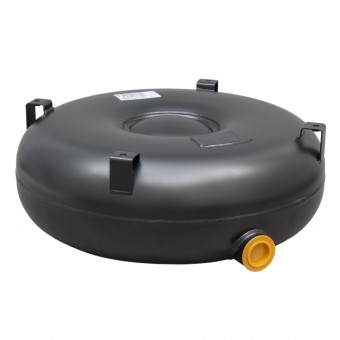

Extrenal centre-filled toroidal tank for multivalve at 0 deg. Optional mounting with brackets that can be customized to specific vehicle architecture. This type of tank is usually mounted underbody in the spare tyre area.

Technical data:

  • Design pressure: 30 bar
  • Approval: ECE R67
  • Multivalve: 0 deg
  • Standard color: black RAL 9005

Sizes:

Part number Diameter D [mm] Height H [mm] Capacity V [ltr] Capacity V 80% [ltr] Weight [kg] Document of homologation
F52002511 520 145 25 20 19 E20-67R-010449.pdf
F52004211 520 225 42 33 23 E20-67R-010455.pdf
F56503811 565 180 38 30 22 E20-67R-010450.pdf
F56504311 565 200 43 34 24 E20-67R-010452.pdf
F58004511 580 200 45 36 24 E20-67R-010452.pdf
F58005111 580 225 51 40 26 E20-67R-010455.pdf
F60004411 600 190 44 35 21 E20-67R-010451.pdf
F60004711 600 200 47 37 23 E20-67R-010452.pdf
F60005311 600 220 53 42 24 E20-67R-010454.pdf
F60005511 600 230 55 44 26 E20-67R-010456.pdf
F60006011 600 250 60 48 27 E20-67R-010458.pdf
F60006611 600 270 66 52 28 E20-67R-010459.pdf
F63004811 630 190 48 38 25 E20-67R-010451.pdf
F63005111 630 204 51 40 25 E20-67R-010453.pdf
F63005811 630 225 58 46 28 E20-67R-010455.pdf
F63006611 630 250 66 52 30 E20-67R-010458.pdf
F63007211 630 270 72 57 32 E20-67R-010459.pdf
F65005411 650 200 54 43 28 E20-67R-010452.pdf
F65006111 650 220 61 48 31 E20-67R-010454.pdf
F65006711 650 240 67 53 33 E20-67R-010457.pdf
F65007711 650 270 77 61 35 E20-67R-010459.pdf
F68006611 680 230 66 52 35 E20-67R-010588.pdf
F68006911 680 240 69 55 36 E20-67R-010589.pdf
F68007211 680 250 72 57 37 E20-67R-010590.pdf
F68008011 680 270 80 64 39 E20-67R-010591.pdf
F72007911 720 230 79 63 39 E20-67R-010588.pdf
F72008311 720 240 83 66 40 E20-67R-010589.pdf
F72008611 720 250 86 68 41 E20-67R-010590.pdf
F72009511 720 270 95 76 42 E20-67R-010591.pdf
F72010211 720 300 102 81 45 E20-67R-010901.pdf
