STAKO Legacy toroidal tanks

Models:


Toroidal Legacy G14

Toroidal | Legacy | G14

Download PDF

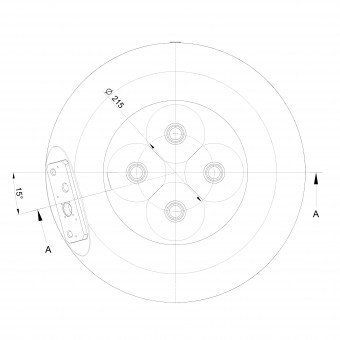

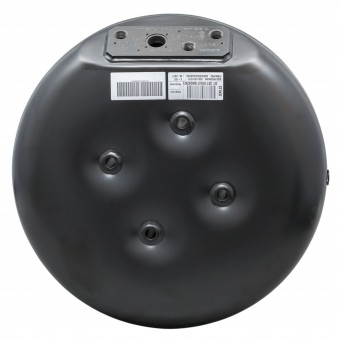

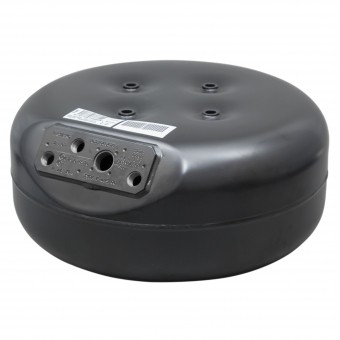

Unique Stako full toroidal tank with 4-hole valve plate. Easy mounting with bolts going through the center part of the tank, or with the use of brackets that can be customized to specific vehicle architecture. This type of tank is usually mounted underbody or in the trunk in the spare tyre area.

Technical data:

  • Design pressure: 30 bar
  • Approval: ECE R67
  • 4-hole valve plate
  • Standard color: black RAL 9005

Sizes:

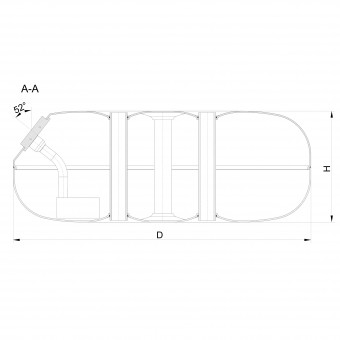

Part number Diameter D [mm] Height H [mm] Capacity V [ltr] Capacity V 80% [ltr] Weight [kg] Document of homologation
G60005514 600 230 55 44 24 E20-67R-010567.pdf
E20-67R-030567.pdf
G60006014 600 250 60 48 25 E20-67R-010569.pdf
E20-67R-030569.pdf
G60006614 600 270 66 52 26 E20-67R-010570.pdf
E20-67R-030570.pdf
G63005814 630 225 58 46 26 E20-67R-010566.pdf
E20-67R-030566.pdf
G63006614 630 250 66 52 27 E20-67R-010569.pdf
E20-67R-030569.pdf
G63007214 630 270 72 57 30 E20-67R-010570.pdf
E20-67R-030570.pdf
G65006114 650 220 61 48 30 E20-67R-010565.pdf
E20-67R-030565.pdf
G65006714 650 240 67 53 32 E20-67R-010568.pdf
E20-67R-030568.pdf
G65007714 650 270 77 61 34 E20-67R-010570.pdf
E20-67R-030570.pdf
G68006614 680 230 66 52 36 E20-67R-010718.pdf
E20-67R-030718.pdf
G68006914 680 240 69 55 37 E20-67R-010719.pdf
E20-67R-030719.pdf
G68007214 680 250 72 57 38 E20-67R-010720.pdf
E20-67R-030720.pdf
G68008014 680 270 80 64 39 E20-67R-010721.pdf
E20-67R-030721.pdf
G72007914 720 230 79 63 39 E20-67R-010718.pdf
E20-67R-030718.pdf
G72008314 720 240 83 66 40 E20-67R-010719.pdf
E20-67R-030719.pdf
G72008614 720 250 86 68 41 E20-67R-010720.pdf
E20-67R-030720.pdf
G72009514 720 270 95 76 43 E20-67R-010721.pdf
E20-67R-030721.pdf
G72010214 720 300 102 81 45 E20-67R-010903.pdf
E20-67R-030903.pdf

Part number

Diameter D [mm]
600
Height H [mm]
230
Capacity V [ltr]
55
Capacity V 80% [ltr]
44
Weight [kg]
24
Document of homologation
E20-67R-010567.pdf
E20-67R-030567.pdf
Diameter D [mm]
600
Height H [mm]
250
Capacity V [ltr]
60
Capacity V 80% [ltr]
48
Weight [kg]
25
Document of homologation
E20-67R-010569.pdf
E20-67R-030569.pdf
Diameter D [mm]
600
Height H [mm]
270
Capacity V [ltr]
66
Capacity V 80% [ltr]
52
Weight [kg]
26
Document of homologation
E20-67R-010570.pdf
E20-67R-030570.pdf
Diameter D [mm]
630
Height H [mm]
225
Capacity V [ltr]
58
Capacity V 80% [ltr]
46
Weight [kg]
26
Document of homologation
E20-67R-010566.pdf
E20-67R-030566.pdf
Diameter D [mm]
630
Height H [mm]
250
Capacity V [ltr]
66
Capacity V 80% [ltr]
52
Weight [kg]
27
Document of homologation
E20-67R-010569.pdf
E20-67R-030569.pdf
Diameter D [mm]
630
Height H [mm]
270
Capacity V [ltr]
72
Capacity V 80% [ltr]
57
Weight [kg]
30
Document of homologation
E20-67R-010570.pdf
E20-67R-030570.pdf
Diameter D [mm]
650
Height H [mm]
220
Capacity V [ltr]
61
Capacity V 80% [ltr]
48
Weight [kg]
30
Document of homologation
E20-67R-010565.pdf
E20-67R-030565.pdf
Diameter D [mm]
650
Height H [mm]
240
Capacity V [ltr]
67
Capacity V 80% [ltr]
53
Weight [kg]
32
Document of homologation
E20-67R-010568.pdf
E20-67R-030568.pdf
Diameter D [mm]
650
Height H [mm]
270
Capacity V [ltr]
77
Capacity V 80% [ltr]
61
Weight [kg]
34
Document of homologation
E20-67R-010570.pdf
E20-67R-030570.pdf
Diameter D [mm]
680
Height H [mm]
230
Capacity V [ltr]
66
Capacity V 80% [ltr]
52
Weight [kg]
36
Document of homologation
E20-67R-010718.pdf
E20-67R-030718.pdf
Diameter D [mm]
680
Height H [mm]
240
Capacity V [ltr]
69
Capacity V 80% [ltr]
55
Weight [kg]
37
Document of homologation
E20-67R-010719.pdf
E20-67R-030719.pdf
Diameter D [mm]
680
Height H [mm]
250
Capacity V [ltr]
72
Capacity V 80% [ltr]
57
Weight [kg]
38
Document of homologation
E20-67R-010720.pdf
E20-67R-030720.pdf
Diameter D [mm]
680
Height H [mm]
270
Capacity V [ltr]
80
Capacity V 80% [ltr]
64
Weight [kg]
39
Document of homologation
E20-67R-010721.pdf
E20-67R-030721.pdf
Diameter D [mm]
720
Height H [mm]
230
Capacity V [ltr]
79
Capacity V 80% [ltr]
63
Weight [kg]
39
Document of homologation
E20-67R-010718.pdf
E20-67R-030718.pdf
Diameter D [mm]
720
Height H [mm]
240
Capacity V [ltr]
83
Capacity V 80% [ltr]
66
Weight [kg]
40
Document of homologation
E20-67R-010719.pdf
E20-67R-030719.pdf
Diameter D [mm]
720
Height H [mm]
250
Capacity V [ltr]
86
Capacity V 80% [ltr]
68
Weight [kg]
41
Document of homologation
E20-67R-010720.pdf
E20-67R-030720.pdf
Diameter D [mm]
720
Height H [mm]
270
Capacity V [ltr]
95
Capacity V 80% [ltr]
76
Weight [kg]
43
Document of homologation
E20-67R-010721.pdf
E20-67R-030721.pdf
Diameter D [mm]
720
Height H [mm]
300
Capacity V [ltr]
102
Capacity V 80% [ltr]
81
Weight [kg]
45
Document of homologation
E20-67R-010903.pdf
E20-67R-030903.pdf
