STAKO Legacy toroidal tanks

Models:

Toroidal Legacy T11

Toroidal | Legacy | T11

Download PDF
T11

T11

T11

T11

T11 rys

T11 rys

T11 rys2

T11 rys2

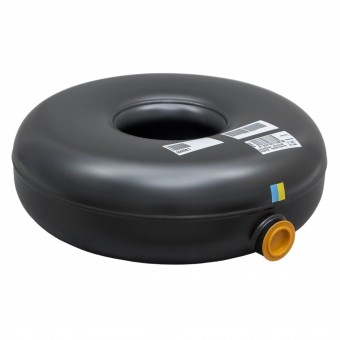

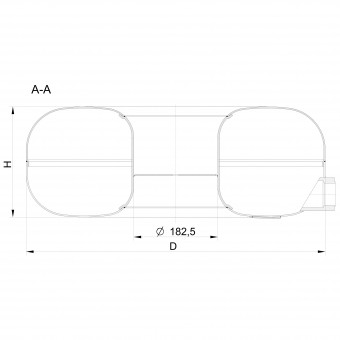

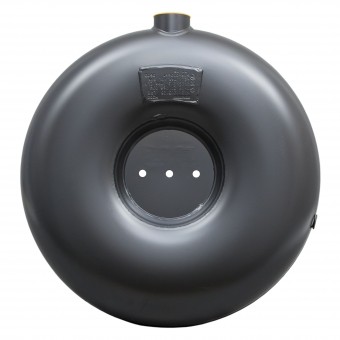

Extrenal toroidal tank for multivalve at 0 deg. Optional mounting with brackets that can be customized to specific vehicle architecture. This type of tank is usually mounted underbody in the spare tyre area.

Technical data:

  • Design pressure: 30 bar
  • Approval: ECE R67
  • Multivalve: 0 deg
  • Standard color: black RAL 9005

Sizes:

Part number Diameter D [mm] Height H [mm] Capacity V [ltr] Capacity V 80% [ltr] Weight [kg] Document of homologation
T52002211 520 145 22 17 17 E20-67R-010438.pdf
E20-67R-030438.pdf
T52002811 520 180 28 22 20 E20-67R-010439.pdf
E20-67R-030439.pdf
T52003611 520 225 36 28 22 E20-67R-010444.pdf
E20-67R-030444.pdf
T55003111 550 180 31 24 21 E20-67R-010439.pdf
E20-67R-030439.pdf
T55003311 550 190 33 26 21 E20-67R-010440.pdf
E20-67R-030440.pdf
T55003511 550 200 35 28 22 E20-67R-010441.pdf
E20-67R-030441.pdf
T55003911 550 220 39 31 23 E20-67R-010443.pdf
E20-67R-030443.pdf
T56503411 565 180 34 27 20 E20-67R-010439.pdf
E20-67R-030439.pdf
T56503811 565 200 38 30 22 E20-67R-010441.pdf
E20-67R-030441.pdf
T58004011 580 200 40 32 23 E20-67R-010441.pdf
E20-67R-030441.pdf
T58004611 580 225 46 36 25 E20-67R-010444.pdf
E20-67R-030444.pdf
T60003911 600 190 39 31 21 E20-67R-010440.pdf
E20-67R-030440.pdf
T60004211 600 200 42 34 22 E20-67R-010441.pdf
E20-67R-030441.pdf
T60004711 600 220 47 37 23 E20-67R-010443.pdf
E20-67R-030443.pdf
T60004811 600 225 48 38 23 E20-67R-010444.pdf
E20-67R-030444.pdf
T60004911 600 230 49 39 24 E20-67R-010445.pdf
E20-67R-030445.pdf
T60005411 600 250 54 43 25 E20-67R-010447.pdf
E20-67R-030447.pdf
T60005911 600 270 59 47 26 E20-67R-010448.pdf
E20-67R-030448.pdf
T63004311 630 190 43 34 24 E20-67R-010440.pdf
E20-67R-030440.pdf
T63004711 630 204 47 38 25 E20-67R-010442.pdf
E20-67R-030442.pdf
T63005311 630 225 53 42 26 E20-67R-010444.pdf
E20-67R-030444.pdf
T63006011 630 250 60 48 27 E20-67R-010447.pdf
E20-67R-030447.pdf
T65005011 650 200 50 40 28 E20-67R-010441.pdf
E20-67R-030441.pdf
T65005511 650 220 55 44 30 E20-67R-010443.pdf
E20-67R-030443.pdf
T65006111 650 240 61 48 32 E20-67R-010446.pdf
E20-67R-030446.pdf
T65007011 650 270 70 56 34 E20-67R-010448.pdf
E20-67R-030448.pdf
T68006011 680 230 60 48 34 E20-67R-010627.pdf
E20-67R-030627.pdf
T68006411 680 240 64 51 35 E20-67R-010628.pdf
E20-67R-030628.pdf
T68006611 680 250 66 52 36 E20-67R-010629.pdf
E20-67R-030629.pdf
T68007311 680 270 73 58 38 E20-67R-010630.pdf
E20-67R-030630.pdf
T72007311 720 230 73 58 38 E20-67R-010627.pdf
E20-67R-030627.pdf
T72007711 720 240 77 61 39 E20-67R-010628.pdf
E20-67R-030628.pdf
T72008011 720 250 80 64 40 E20-67R-010629.pdf
E20-67R-030629.pdf
T72008811 720 270 88 70 41 E20-67R-010630.pdf
E20-67R-030630.pdf
T72009511 720 300 95 76 44 E20-67R-010926.pdf
E20-67R-030926.pdf
